Product Introduction

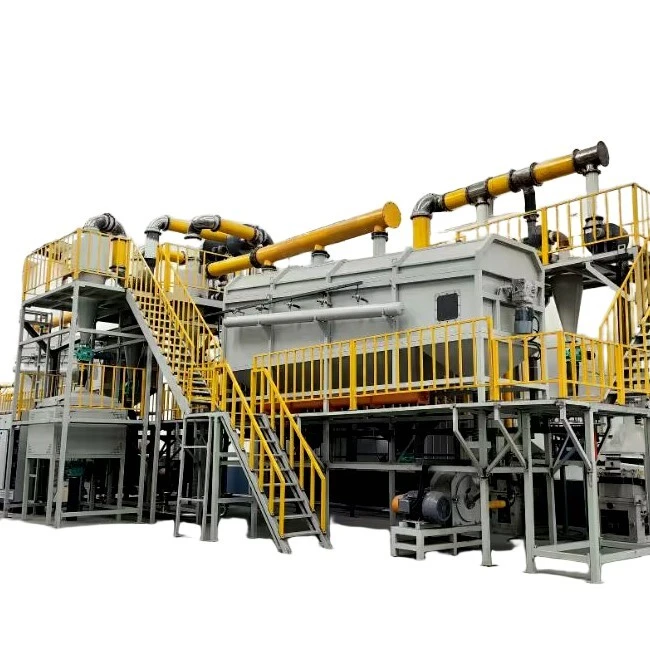

Waste lithium battery recycling production line

The Waste lithium battery recycling production line adopts a two-stage crushing and three-stage sorting process to regenerate it into recyclable metal powder and non-metal powder respectively.

The waste lithium battery processing equipment mainly adopts a "dry-wet combination" method to dismantle lithium batteries. First, the lithium battery shell is crushed, and then graded, screened and separated after crushing. After secondary crushing and separation, dust and positive and negative electrode materials are collected and processed through dust removal facilities and pulse dust removal facilities, which is both environmentally friendly and produces huge economic benefits.

Product Parameters

Application Area

Our waste lithium battery recycling production line is suitable for various scrapped batteries, 18650 batteries, soft pack batteries, mobile phone lithium batteries, power lithium batteries, positive plates, negative plates, etc. After disassembly, lithium batteries can be sorted into copper, aluminum, iron, plastic, lithium cobalt oxide powder, positive and negative electrode powder, and other rare metal materials.

Repair and maintenance of waste lithium battery recycling machines

(1) The blades will lose its sharpness after being used for a long time, so it must be removed and sharpened to avoid deterioration of the machine's operating conditions.

(2) The two bearings at both ends of the main shaft are equipped with lubricating oil nozzles, which should be refueled regularly.

(3) After being used for a long time, the V-belt will stretch, and the distance between them should be adjusted to avoid reducing the transmission power.

(4) When the fragment material is a thin material such as a film, it may occasionally encounter a blockage in the middle of the crushing chamber. You can open the top door of the crushing chamber and use a small wooden stick to stir the fragments to the bottom of the chamber. Do not put your hands into the bottom of the chamber to avoid accidents.
