Professional Waste Plastic Recycling Machine - HUATAO Machine

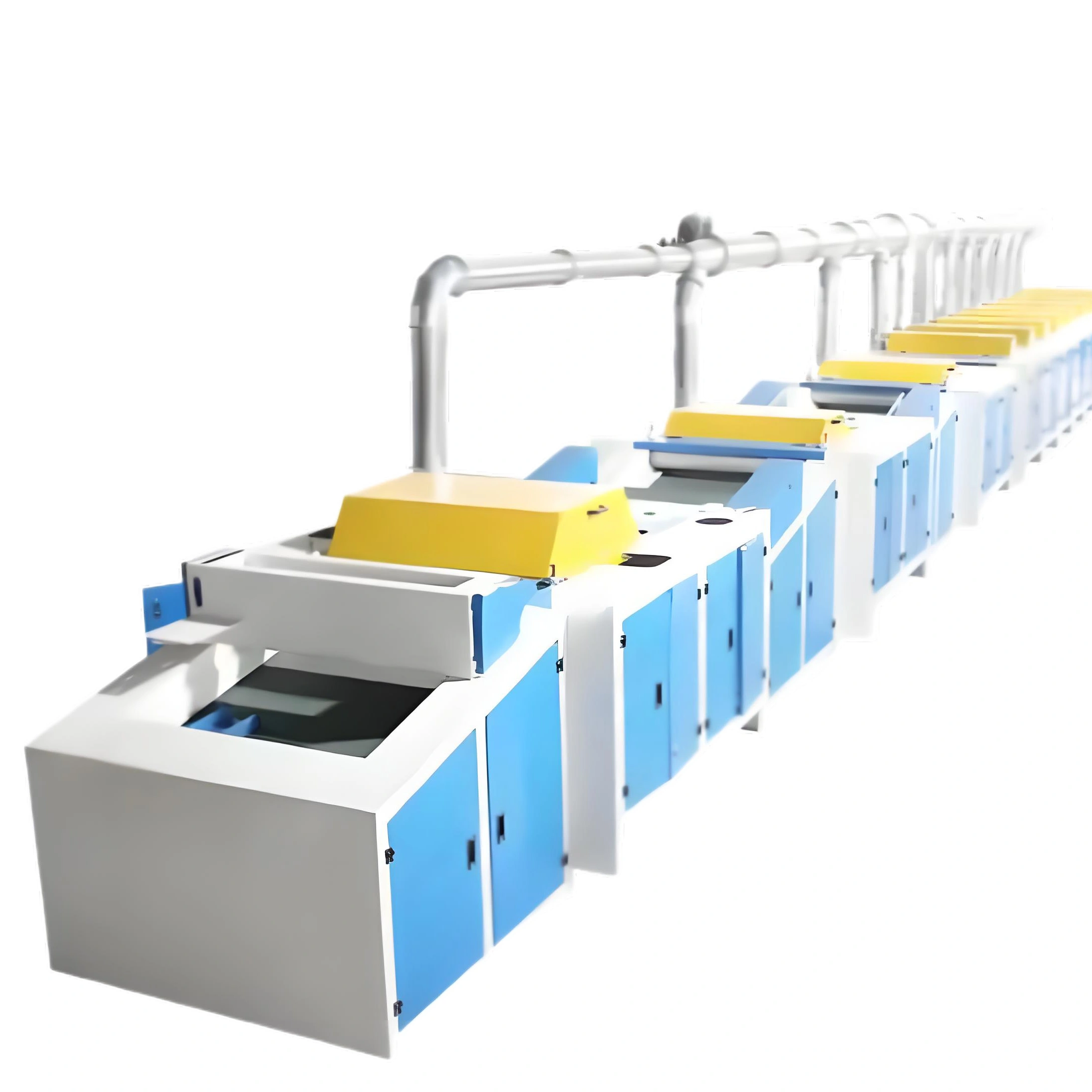

The machine body is composed of HT-1300 opening and cleaning rollers. The line is improved based on rich and advanced experience in Chinese cotton processing, which replace chains, gear driving by speed reducer driving to lower the happening of chains slipping and machinery parts damage greatly.
Product Introduction
The machine body is composed of HT-1300 opening and cleaning rollers. The line is improved based on rich and advanced experience in Chinese cotton processing, which replace chains, gear driving by speed reducer driving to lower the happening of chains slipping and machinery parts damage greatly. Each driving part is equipped an speed reducer which controls the driving system independently, so the user can adjust the speed accordingly to the material to achieve the best opening performance in the process. The adoption of air flow driving lowers greatly the happening of fire. After years of running test, the machine line is safe, fire-fight, high capacity, low consumption of electricity, eco-friendly and win popularity in customers by its compact design structure.
Product Parameters
|
Opening machine overal dimensions(installed safety case l×w×h) |
6280mm×2770mm×1340mm |
|
Recycling machine overal dimensions(installed safety case l×w×h) |
8500mm×2510mm×1020mm |
|
Weight |
13000kgs |
|
Output |
200kg-250kg/h,depending on different material |
|
Capacity of removing impurities |
6%-10% |
|
Cylinder diameter |
620-620-250-250-250-250-250-250mm |
|
Cylinder rotation speed |
1100-1260-2050-2200-2200-2200-2200-2200rpm/min |
|
Power(kw) |
37-30-11-7.5-5.5-5.5-5.5-5.5kw |
|
Wire of cylinder |
Card clothing/pin/U type |
Features
HT-1300 machine uses high speed centrifugal force generated by cylinder rotation to remove the hard impurities in waste raw material and to loosen fiber for further use after rolling up. The machine is widely used to process cotton clips, leftover, waste yarn, old clothes thread and flax etc.
The machine line is compact in structure and easy to operate with safety and good dust removing features.
The opening recycling line is fully enclosed, energy-saving and environmental friendly. By manual feeding, the waste material will be placed more evenly and it is easy for labors to pick up metal stuff or foreign matter in the first time to avoid damage to equipment and fire accident. The waste recycling system is equipped in the rear of the first opener and the dropping waste material will be transported back to condenser for further processing through the pipes by airflow. All cleaning machines are enclosed. The material processed by first opener will be directed to the second opener and then material will go to the cleaning system. Each cleaning cylinder has its separate waste material collecting pipe and all unopened material will be transported back to the first opener by airflow for further recycling. Airflow working method replaces the bamboo conveyor and rubber conveyor, which is tidy, safe and fire precaution. Speed frequency control is applied instead of traditional chain-driven working. The driving part of each opener and cleaner is controlled by frequency PRC device. Fire fighting device
is fixed on each cylinder.
Application
