Plastic Recycling Machine Suppliers - for Industry - HUATAO Machine
Company Advantages
· HUATAO Machine plastic recycling machine suppliers is manufactured using state-of-the-art technology based on the principles of lean production.
· The product's unparalleled features due to its stable performance and powerful features have been widely praised by customers.
· So far this HUATAO Machine branded product is the best seller among its competitors in the market.
Product Introduction

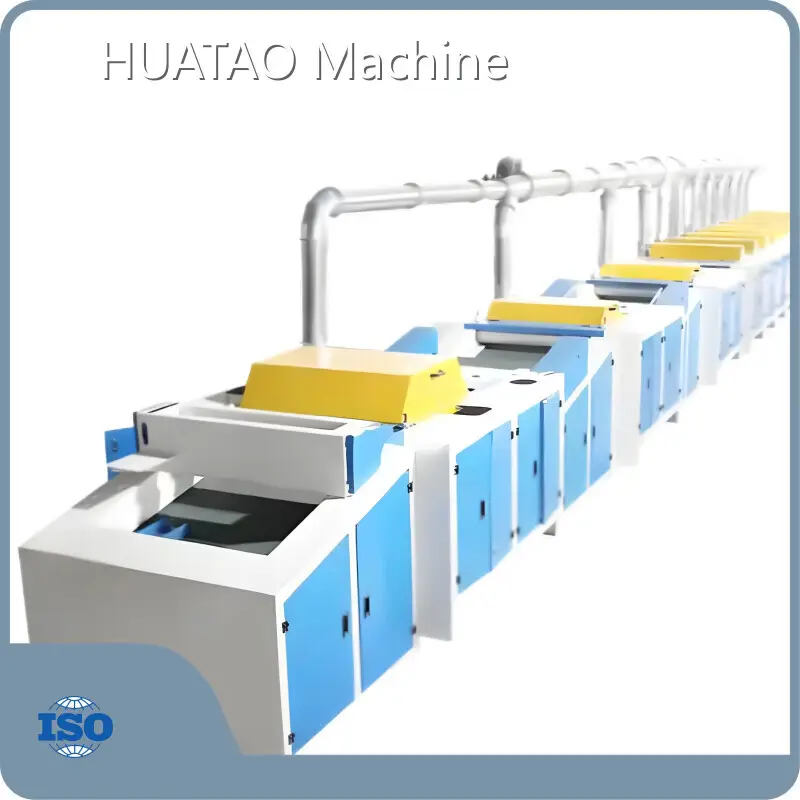

The machine body is composed of HT-1300 opening and cleaning rollers. The line is improved based on rich and advanced experience in Chinese cotton processing, which replace chains, gear driving by speed reducer driving to lower the happening of chains slipping and machinery parts damage greatly. Each driving part is equipped an speed reducer which controls the driving system independently, so the user can adjust the speed accordingly to the material to achieve the best opening performance in the process. The adoption of air flow driving lowers greatly the happening of fire. After years of running test, the machine line is safe, fire-fight, high capacity, low consumption of electricity, eco-friendly and win popularity in customers by its compact design structure.
Product Parameters
|
Opening machine overal dimensions(installed safety case l×w×h) |
6280mm×2770mm×1340mm |
|
Recycling machine overal dimensions(installed safety case l×w×h) |
8500mm×2510mm×1020mm |
|
Weight |
13000kgs |
|
Output |
200kg-250kg/h,depending on different material |
|
Capacity of removing impurities |
6%-10% |
|
Cylinder diameter |
620-620-250-250-250-250-250-250mm |
|
Cylinder rotation speed |
1100-1260-2050-2200-2200-2200-2200-2200rpm/min |
|
Power(kw) |
37-30-11-7.5-5.5-5.5-5.5-5.5kw |
|
Wire of cylinder |
Card clothing/pin/U type |
Features
HT-1300 machine uses high speed centrifugal force generated by cylinder rotation to remove the hard impurities in waste raw material and to loosen fiber for further use after rolling up. The machine is widely used to process cotton clips, leftover, waste yarn, old clothes thread and flax etc.
The machine line is compact in structure and easy to operate with safety and good dust removing features.
The opening recycling line is fully enclosed, energy-saving and environmental friendly. By manual feeding, the waste material will be placed more evenly and it is easy for labors to pick up metal stuff or foreign matter in the first time to avoid damage to equipment and fire accident. The waste recycling system is equipped in the rear of the first opener and the dropping waste material will be transported back to condenser for further processing through the pipes by airflow. All cleaning machines are enclosed. The material processed by first opener will be directed to the second opener and then material will go to the cleaning system. Each cleaning cylinder has its separate waste material collecting pipe and all unopened material will be transported back to the first opener by airflow for further recycling. Airflow working method replaces the bamboo conveyor and rubber conveyor, which is tidy, safe and fire precaution. Speed frequency control is applied instead of traditional chain-driven working. The driving part of each opener and cleaner is controlled by frequency PRC device. Fire fighting device
is fixed on each cylinder.
Application
Company Features
· HUATAO Machine has dominated the leading place in plastic recycling machine suppliers market.
· We have fully-equipped facilities. They are more powerful, more efficient, and more reliable, which helps speed up our operating times and improve internal processes considerably.
· We generate new value, minimize costs, and increase operational stability by focusing on four broad areas: production, product design, value recovery, and supply-circle management.
Application of the Product
The plastic recycling machine suppliers produced by our company can be applied to different fields and scenarios. So the different requirements of different people can be satisfied.
According to different needs of customers, HUATAO Machine is capable of providing reasonable, comprehensive and the most cost-effective solutions for customers.
Product Comparison
Compared with products in the industry, HUATAO Machine's plastic recycling machine suppliers has the outstanding advantages which are mainly reflected in the following aspects.
